DJI RC – Remote Controller

Description

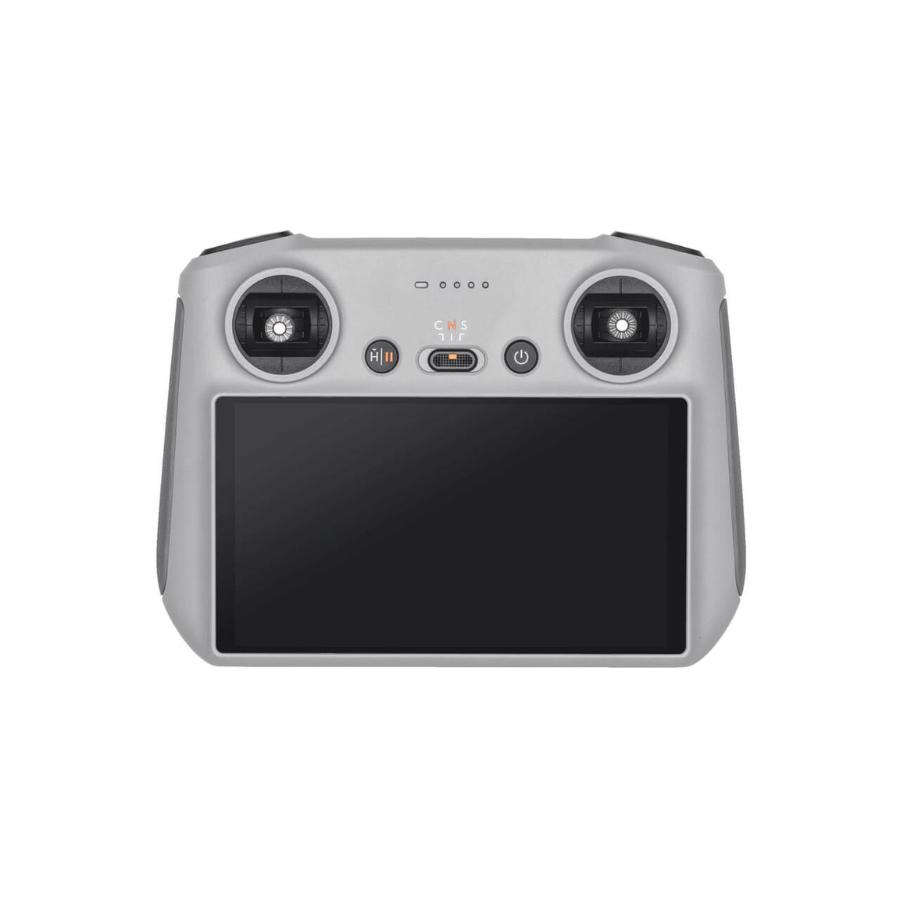

The DJI RC Remote Controller is an all‑in‑one smart controller featuring a built‑in high‑definition touchscreen display, advanced video transmission system, ergonomic physical controls, and long battery life. It removes the need to use a smartphone as a display — providing a self‑contained piloting interface for supported DJI drones.

📺 Built‑In Display & User Interface

• Integrated 5.5‑inch Full HD Screen: The controller’s built‑in LCD has a 1920 × 1080 resolution and delivers a clear, detailed live view of the aircraft’s camera feed and flight telemetry.
• High Brightness (≈700 nits): The screen is bright enough for use in direct sunlight, improving visibility when flying outdoors.
• Touchscreen Navigation: Responsive touch support makes it easy to access menus, change settings, and interact with flight features directly on the controller.

📡 Wireless Transmission Technology

• OcuSync 3+ Support: When paired with drones that support the O3+ transmission system, the DJI RC delivers low‑latency, HD (1080p/60 fps) live video streaming, enhancing pilot awareness and control.
• Extended Range: In open areas without interference, transmission range can reach up to 15 km (actual range varies based on environment and region).
• Dual‑Band Frequencies: The controller automatically works on 2.4 GHz and 5.8 GHz bands to maintain a stable connection and reduce interference.

🕹️ Physical Controls & Handling

• Dual‑Spring Control Sticks: Precision control sticks offer smoother, more accurate handling for flight maneuvers.
• Customizable Buttons & Dials: Physical buttons and control dials can often be customized through the DJI Fly app to suit your piloting preferences.
• Detachable Sticks: The control sticks are removable to make transport and storage easier.

🔋 Power, Battery & Runtime

• Internal Lithium‑Ion Battery: The DJI RC uses a built‑in 5200 mAh rechargeable battery.
• Long Operating Time (~4 Hours): On a full charge, it can operate for about up to 4 hours, which is generally more than enough for multiple flights or extended sessions.
• USB‑C Charging: Charges via USB‑C — typically taking between 1.5 – 2.3 hours to fully recharge.
• LED Status Indicators: Built‑in LEDs show battery and connection status at a glance.

🧠 Connectivity & Storage

• Built‑In microSD Slot: Supports microSD cards (often up to 512 GB) for caching and previewing footage directly on the controller.
• Wireless Connectivity: Includes Wi‑Fi and Bluetooth support (e.g., Wi‑Fi 802.11 and Bluetooth 4.x/5.x) for app features, firmware updates, and media transfer.
• Internal Antennas: The antennas are built into the controller body to keep the design compact and lightweight.

📊 Operating Conditions & Reliability

• Lightweight & Portable: Weighing only about 390 g, the DJI RC is comfortable to hold and easy to carry for field missions.
• Wide Temperature Range: It’s designed to operate reliably in typical outdoor conditions — for example, from about –10 °C to 40 °C.
• Quick Startup: Because the screen is built in, the controller can connect to a compatible drone and begin flying immediately after powering on — no phone connection needed.

🚁 Typical Compatible Drones

Commonly paired with DJI consumer drones supporting O3/O3+ systems, for example:
• DJI Mavic 3 Pro & variants
• DJI Mavic 3 Classic/Cine
• DJI Mini 3 Pro
• DJI Air 2S
(Exact compatibility should be confirmed for your specific aircraft model and firmware.)
