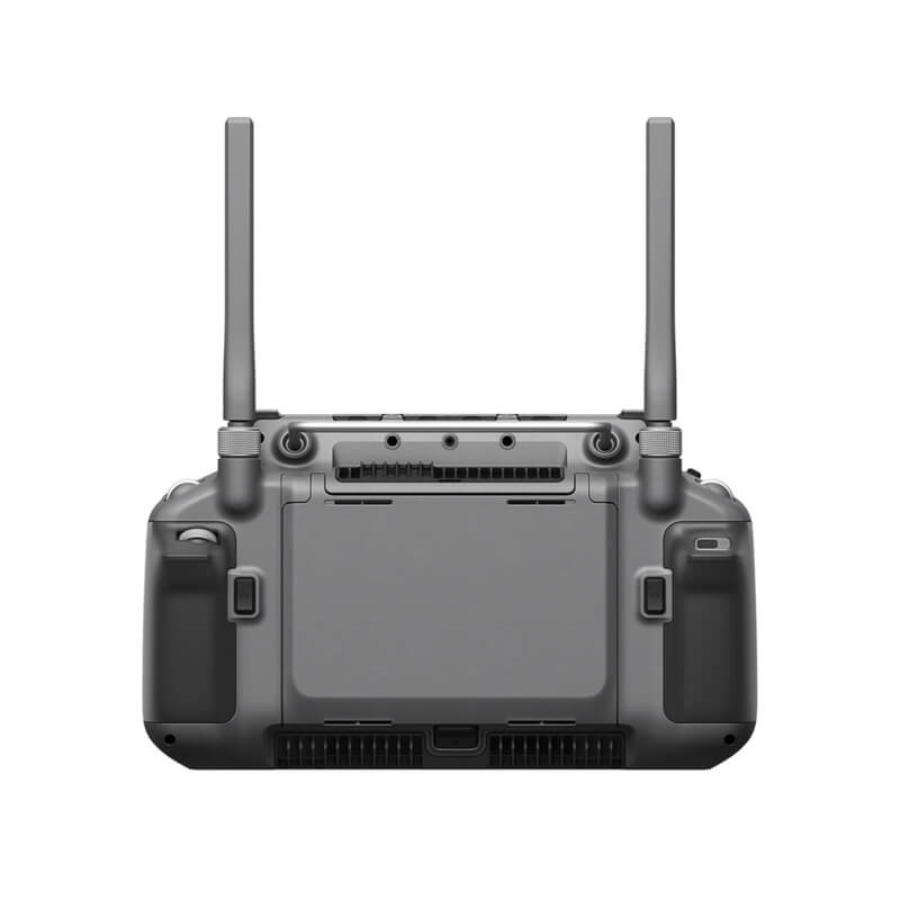

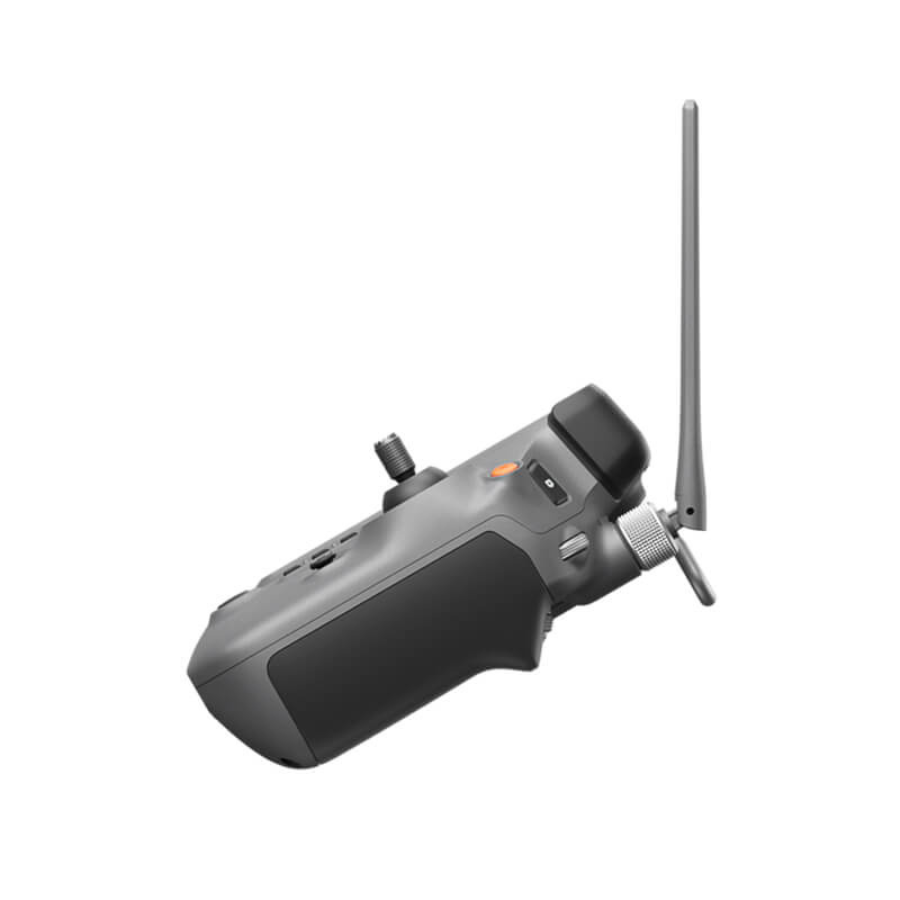

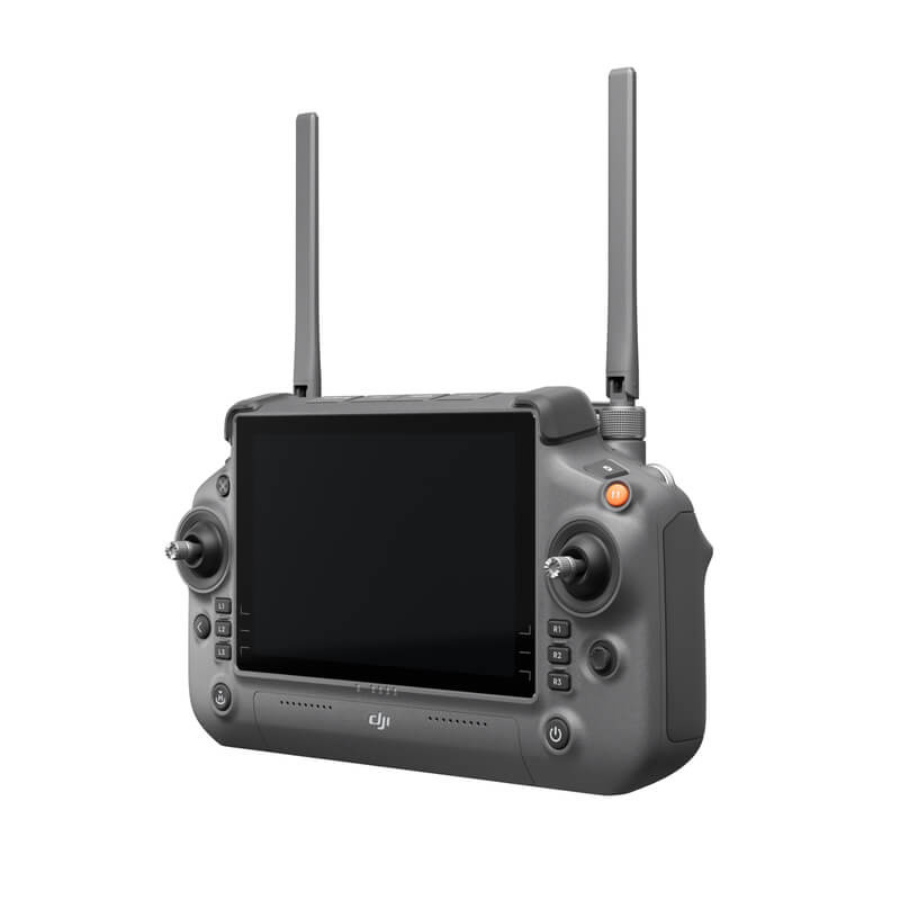

DJI RC Plus

Description

The DJI RC Plus is an advanced, rugged smart remote controller designed for demanding professional and enterprise drone missions. It consolidates flight control, telemetry, and high-quality video monitoring into a single integrated system — eliminating the need for external mobile devices while offering beefed-up features and durability for field work. This controller is ideal for applications such as public safety, industrial inspection, surveying, search-and-rescue, and long-range mapping missions where visibility, reliability, and endurance are critical.

🖥️ Display & User Interface

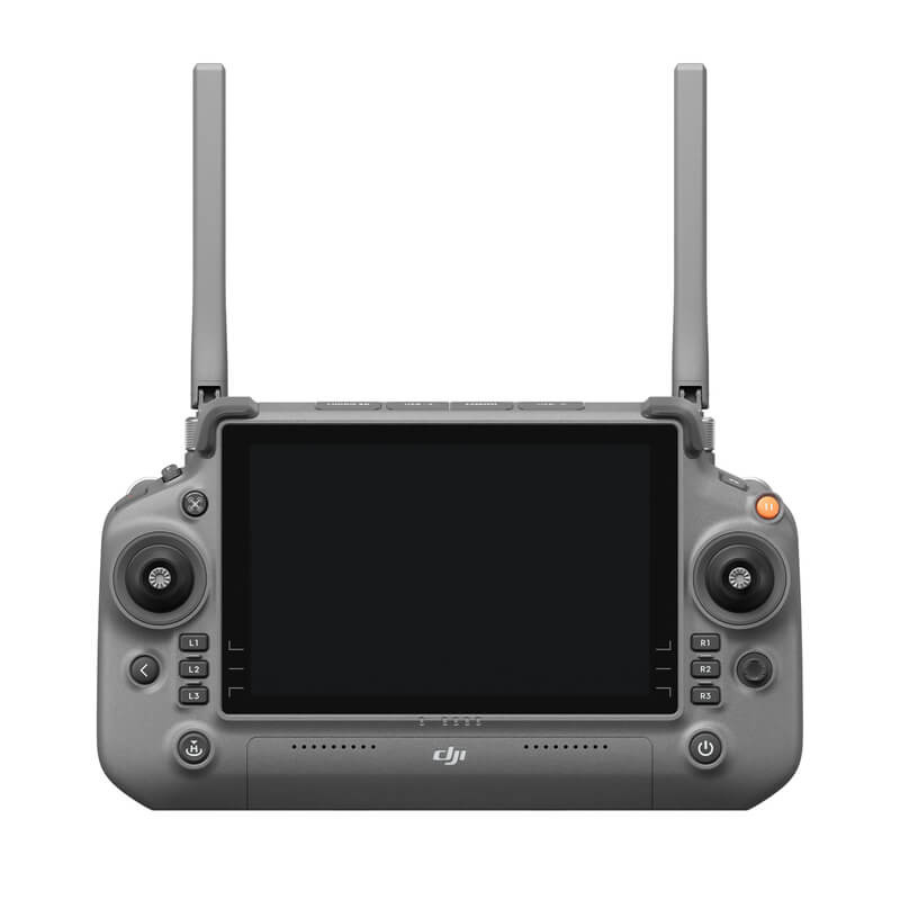

• Large 7-inch touchscreen display: The RC Plus sports a wide 7.02-inch screen with a 1920 × 1200 Full HD resolution, giving pilots a detailed and expansive view of live video feed and drone telemetry.
• Ultra-bright for outdoor use: With up to 1,200 cd/m² brightness, the screen remains readable even in bright sunlight, enhancing situational awareness outdoors.
• Multi-touch controls: The responsive touchscreen lets you navigate menus, change settings, and access mission data without external devices.

🛠️ Build Quality & Durability

• IP54 ruggedized housing: Engineered to resist dust ingress and water sprays, the DJI RC Plus can handle harsh field conditions and varied climates — from rain to dusty environments — making it suitable for industrial and emergency use.
• Wide operating temperature range: Designed to operate efficiently from about –20 °C to 50 °C, so it stays functional in extreme cold or heat.

🔋 Power & Extended Runtime

• Dual power system: Combines an internal high-capacity battery with support for an external hot-swappable WB37 battery, enabling extended missions without downtime.
• Hot-swappable battery design: You can replace batteries without powering down the controller, an invaluable feature for long-duration operations.
• Up to ~6 hours of runtime: With both internal and external batteries installed, the controller can stay powered for about six hours, supporting long shifts and multi-phase missions.
• USB-C PD charging: Support for 65 W USB-C fast charging means shorter recharge cycles and more time in the field.

📶 Connectivity & Transmission

• OcuSync Enterprise (O3 Enterprise) support: Offers stable, low-latency control and HD video transmission with a strong RF link up to around 15 km in unobstructed environments.
• Quad-antenna array: Multiple antennas enhance signal stability and resistance to interference for reliable control in mission-critical conditions.
• Optional 4G cellular connectivity: For scenarios with weak traditional RF signals, optional LTE connectivity adds another layer of redundant data transmission.
• Wi-Fi 6 & Bluetooth: Built-in modern wireless tech helps with firmware updates, media transfer, and supplementary connectivity.

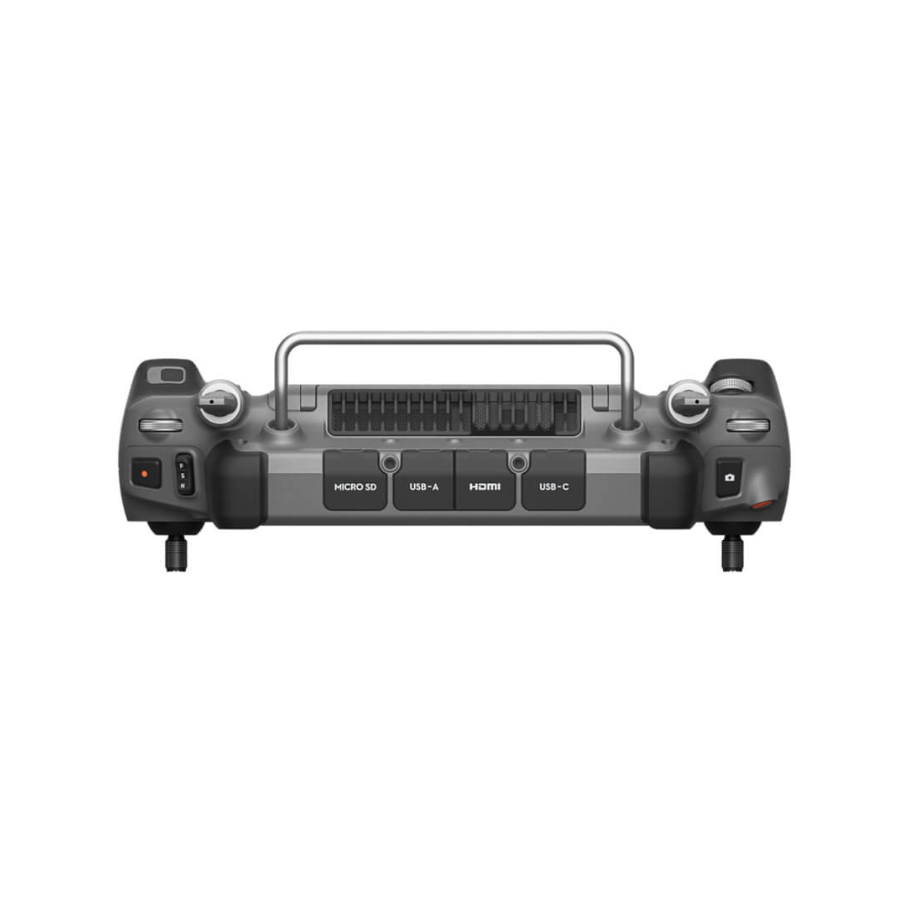

• HDMI & USB ports: The controller includes HDMI output and multiple USB ports for connecting external displays or peripherals during complex workflows.

🕹️ Controls & Operation

• Physical buttons and customizable controls: In addition to touchscreen input, the RC Plus features physical buttons and dials that can be configured for quick access to key functions (e.g., switching views, modes, or payload controls).
• Ergonomic layout: Designed for extended use in the field by professionals, balancing tactile controls with a large display.
• Dual Operator Mode: Enables separate pilot and payload operator control during complex missions, enhancing multi-task workflows.

🚁 Drone Compatibility

The RC Plus is primarily targeted at enterprise-grade DJI aircraft, such as:

• DJI Matrice 30 Series

• DJI Matrice 300 RTK (with appropriate firmware)

• DJI Matrice 350 RTK
  (and similar industrial platforms that support enterprise transmission protocols)

🛠️ Practical Uses

The DJI RC Plus excels in industry and public sector applications such as:
• Search-and-Rescue: Strong visibility and long runtime for prolonged missions.
• Industrial Inspections: Stable video and rugged design assist in inspecting infrastructure like bridges, towers, and powerlines.
• Surveying & Mapping: Large, bright screen and precise controls aid in detailed, data-rich flight operations.
• Public Safety & Emergency Response: Reliable performance under stress and in adverse weather.
