DJI Matrice 400 2510F Propeller

Description

Overview

The DJI Matrice 400 2510F Propeller set is a high‑performance, enterprise‑grade rotor blade system specifically designed for the DJI Matrice 400 platform. These propellers are critical components that directly influence the drone’s lift, efficiency, stability, and overall flight performance — especially under heavy payloads and long‑duration missions.

🛠️ Design & Construction

• Factory‑Matched Performance: The 2510F propellers are optimized and matched at the factory to deliver consistent, high‑thrust performance that complements the Matrice 400’s powerful motors.
• High‑Strength Material: Constructed from carbon‑fiber reinforced polymer composite, giving the blades a lightweight yet robust structure that resists stress and maintains aerodynamic integrity even under load.
• Foldable Blade Design: The blades easily fold inwards for compact transport and storage but lock rigidly in flight, balancing convenience with safe, reliable operation.

✈️ Flight Performance

• Size & Thrust: With 25 × 10‑inch blades (around 63.5 cm in diameter and 25 cm pitch), these propellers generate the lift necessary to support the Matrice 400’s up to 6 kg payload capacity and ~59 minutes maximum endurance.
• Low Vibration Balance: Each propeller is factory‑balanced to minimize vibration in flight, enhancing stability, responsiveness, and sensor/gimbal accuracy — essential for precise mapping, inspection, and cinematic work.
• All‑Weather Capability: The design supports operation within a wide temperature range (about –20 °C to 50 °C) and works with the Matrice 400’s IP55 protection, helping ensure reliable performance in dust, light rain, and other challenging environmental conditions.

🧰 Practical Features

• Quick Installation: The foldable blade hubs and secure locking mechanism allow fast attachment and removal during maintenance or replacement.
• CW & CCW Pair: The set includes one clockwise (CW) and one counter‑clockwise (CCW) propeller, ensuring balanced thrust in the quad‑rotor configuration.
• Mounting Hardware: Includes six mounting screws for secure installation, and it’s strongly recommended to use new screws and proper torque specs outlined in the Matrice 400 manual to avoid imbalance or motor stress.

⚠️ Safety & Usage Notes

• Exclusive Compatibility: These 2510F propellers are made exclusively for the Matrice 400 series — do not mix with other propeller models.
• Pre‑Flight Inspection: Always inspect blades before every flight and replace immediately if there are chips, cracks, warping, or damage — compromised props can reduce lift or lead to unstable flight.
• Proper Torque: Use thread‑locker and torque settings specified in the user manual when installing to prevent imbalance, vibration, or motor damage.

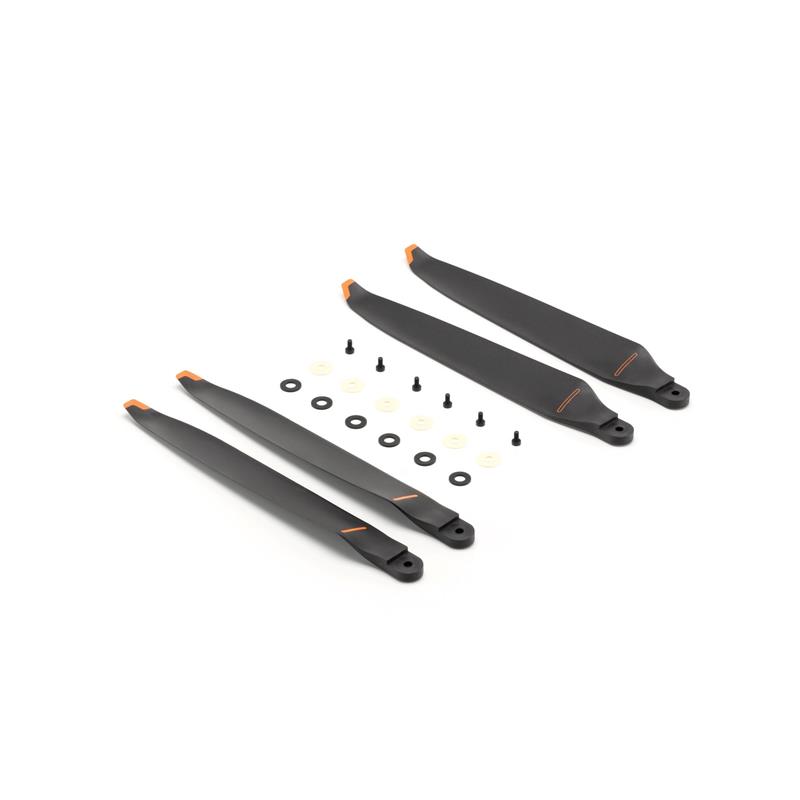

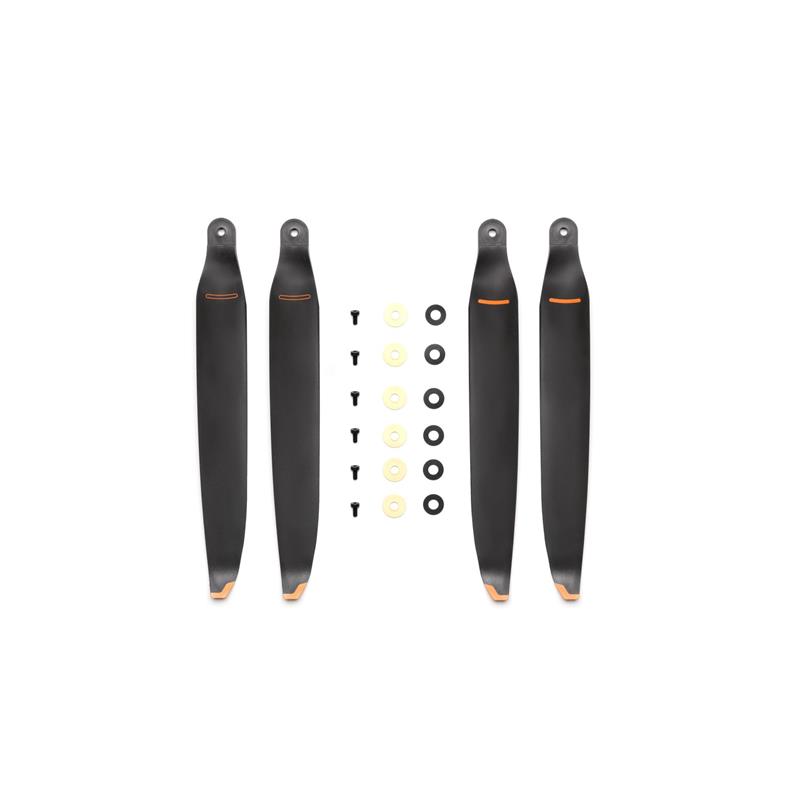

📦 Package Contents

• 1 × Clockwise (CW) 2510F propeller
• 1 × Counter‑clockwise (CCW) 2510F propeller
• 6 × Propeller mounting screws

🧭 Why It Matters

Propellers are among the most crucial flight components on a multirotor drone. They directly affect:

• Lift and efficiency — determining flight time and payload performance

• Stability and vibration — influencing sensor accuracy and video quality

• Safety and responsiveness — essential for precise enterprise missions like surveying, inspection, and search‑and‑rescue work

Choosing official DJI propellers like the 2510F ensures you maintain the Matrice 400’s engineered performance and safety margins
