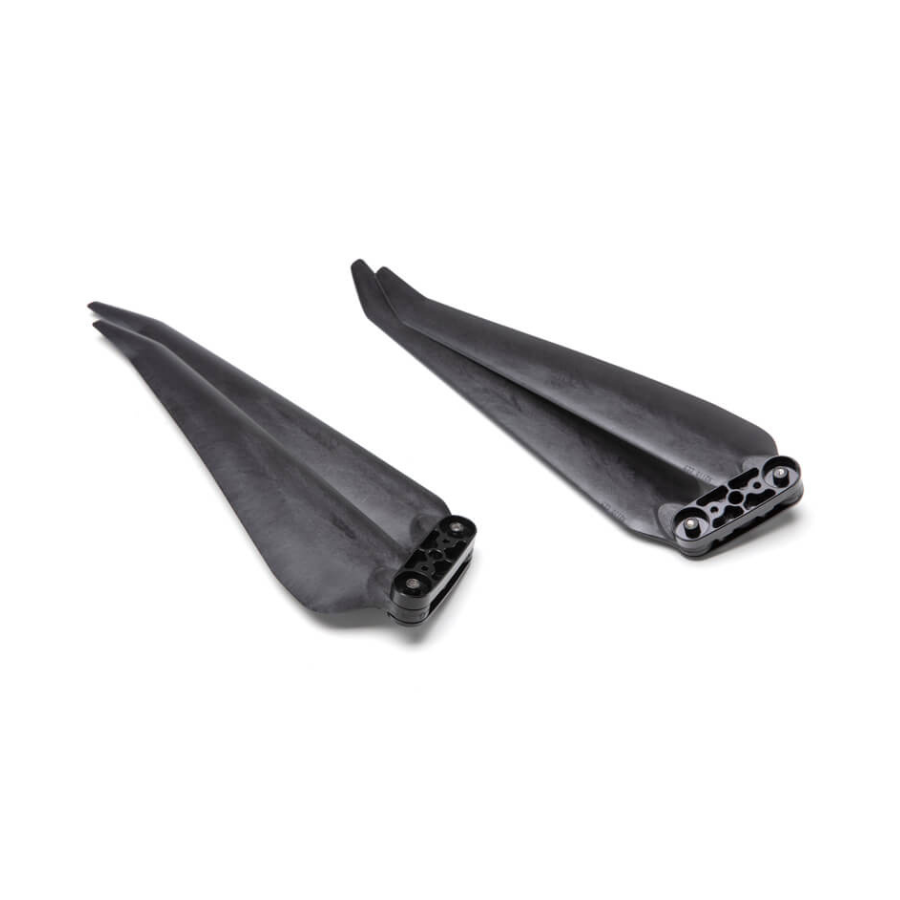

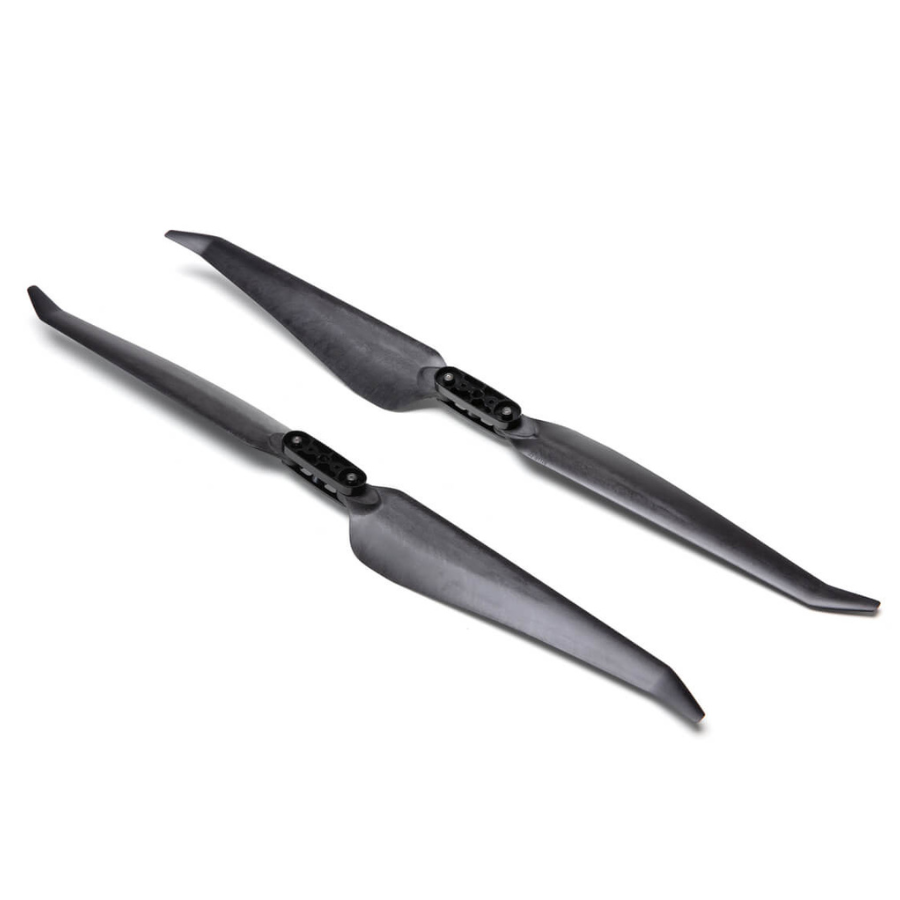

2110 Propeller for DJI Matrice 300 Series

Description

Design & Construction

• Precision Engineering: These propellers are made to DJI’s exact specifications to ensure optimal performance and safe flight characteristics on the Matrice 300 Series.
• Foldable Blades: Each propeller blade folds inward for compact transport and storage, yet locks securely in place during flight for dependable thrust.
• Lightweight Durable Material: Built from lightweight yet durable materials that provide strength without unnecessarily burdening the drone’s weight budget, reducing strain on motors.
• CW & CCW Pair: The set includes one clockwise (CW) and one counter‑clockwise (CCW) propeller to balance thrust and stability in a quad‑rotor setup.
• Mounting Hardware: Includes six screws for secure attachment to the drone’s motor arms.

✈️ Performance Specifications

• Diameter: Approximately 21 inches (53 cm) — matched to the Matrice 300 Series propulsion system for balanced lift and efficiency.
• Pitch: 10 inches (25 cm) — optimized for the right combination of thrust and responsiveness during typical commercial flights.
• Foldable Design: Simplifies setup and teardown between missions and reduces space during transport.

✈️ Flight Characteristics

• Standard‑Altitude Performance: The 2110 propeller is DJI’s “standard” propeller for general‑purpose flying at low to moderate altitudes (up to ~5000 m service ceiling with typical take‑off loads).
• Stable Thrust Output: Its size and pitch deliver reliable lift and responsive control, suitable for applications like aerial inspection, surveying, mapping, and public safety missions.
• Low‑Vibration Flight: Factory design and balance reduce vibration, which helps improve gimbal stabilization and imaging quality during flight operations.

⚠️ Use & Safety Notes

• OEM Quality: As the default propeller supplied with the aircraft, the 2110 model aligns with DJI’s engineering tolerances and performance goals for the Matrice 300 Series.
• Replace Only When Necessary: Although built to last, change propellers if they show chips, cracks, warping, or damage — compromised blades can adversely affect stability and safety.
• Correct Pairing: Always use one CW and one CCW in each propeller position and do not mix different types (e.g., 2110 with 2110s or 2195) to avoid imbalance.
• Installation: Follow DJI’s torque and installation guidelines to ensure each blade is securely mounted and balanced
